Used Caronator # 10-24809

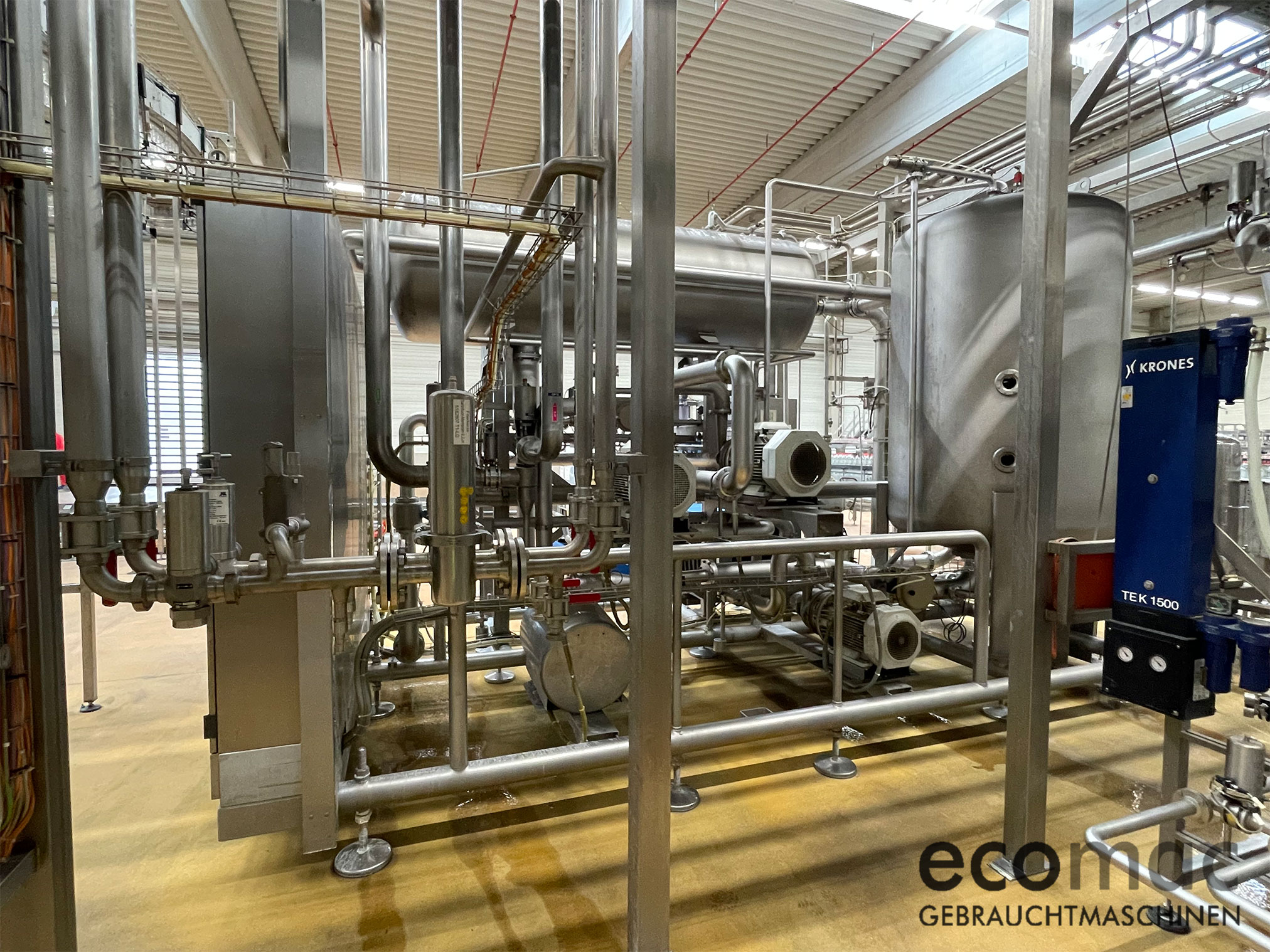

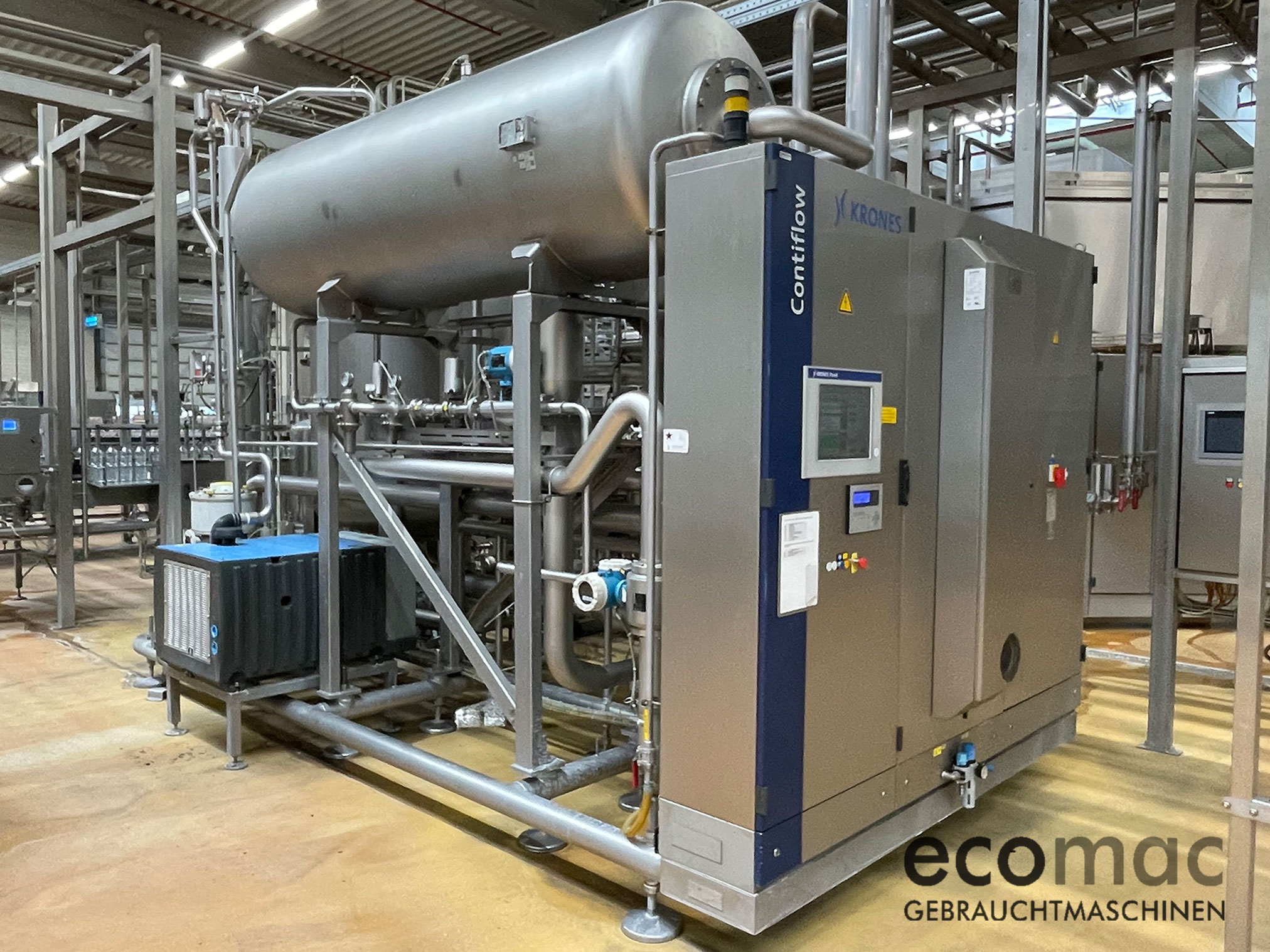

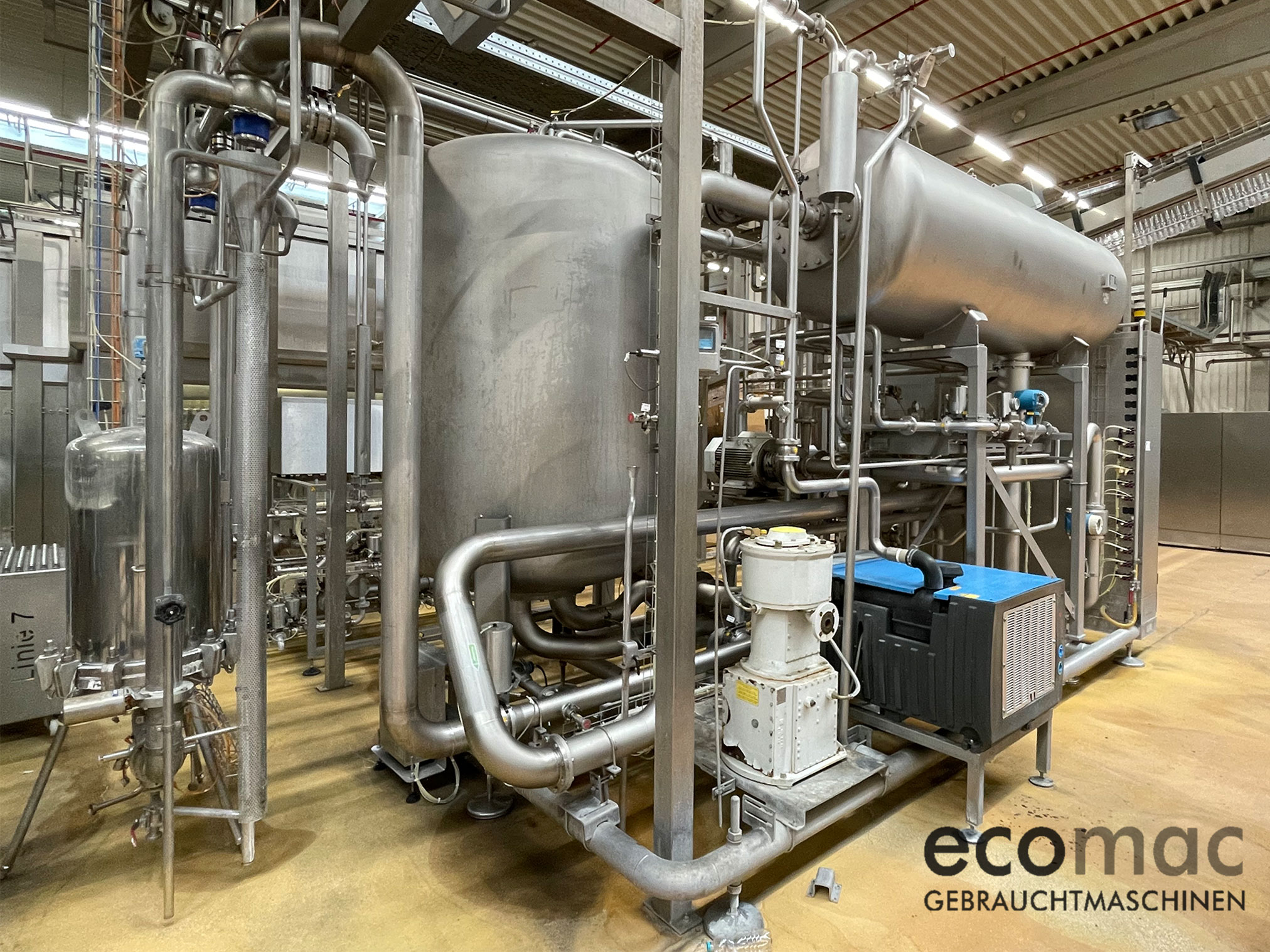

This carbonator is designed for a flow rate of 30–90 m³/h and was installed in a PET filling line with a capacity of 43,000 1.5-liter bottles per hour. The machine is available immediately and can be inspected in Neutraubling.
| Output range | 30 - 90 m³/h |
|---|---|
| Carbonisation | 2 - 10 g/l |
| Deaeration unit | The product water is deaerated before mixing with components using a simple vacuum |
| This reduces the residual oxygen content in the product water to 1.5 mg/l (based on a maximum of 10 mg/l pre-load at 15°C) | |
| Operation | 15" colour display with ZenOn visualisationsoftware |
| Control Unit | Siemens S7 300 |
| Kind of current | TN-C-Nen, 230/400 V, 50 Hz |
Details
Number
10-24809
Product
Krones
Model
Contiflow 90/2
Performance
68.000 l/h
Equipment
1g CO²/l until 10g CO²/l
Year
2006
Delivery
promptly
Download
Download Sheet #10-24809Download entire machine list
