Used Packing Machine # 10-24827
The packaging machine, available from March 2026, is suitable for handling bottles in trays with film, and cluster packs in trays with film.
Further information is available upon request.
| Equipment | Combined infeed conveyor for loose containers (6 lines) and multipacks (2 or 3 lanes)-spurig) |
|---|---|

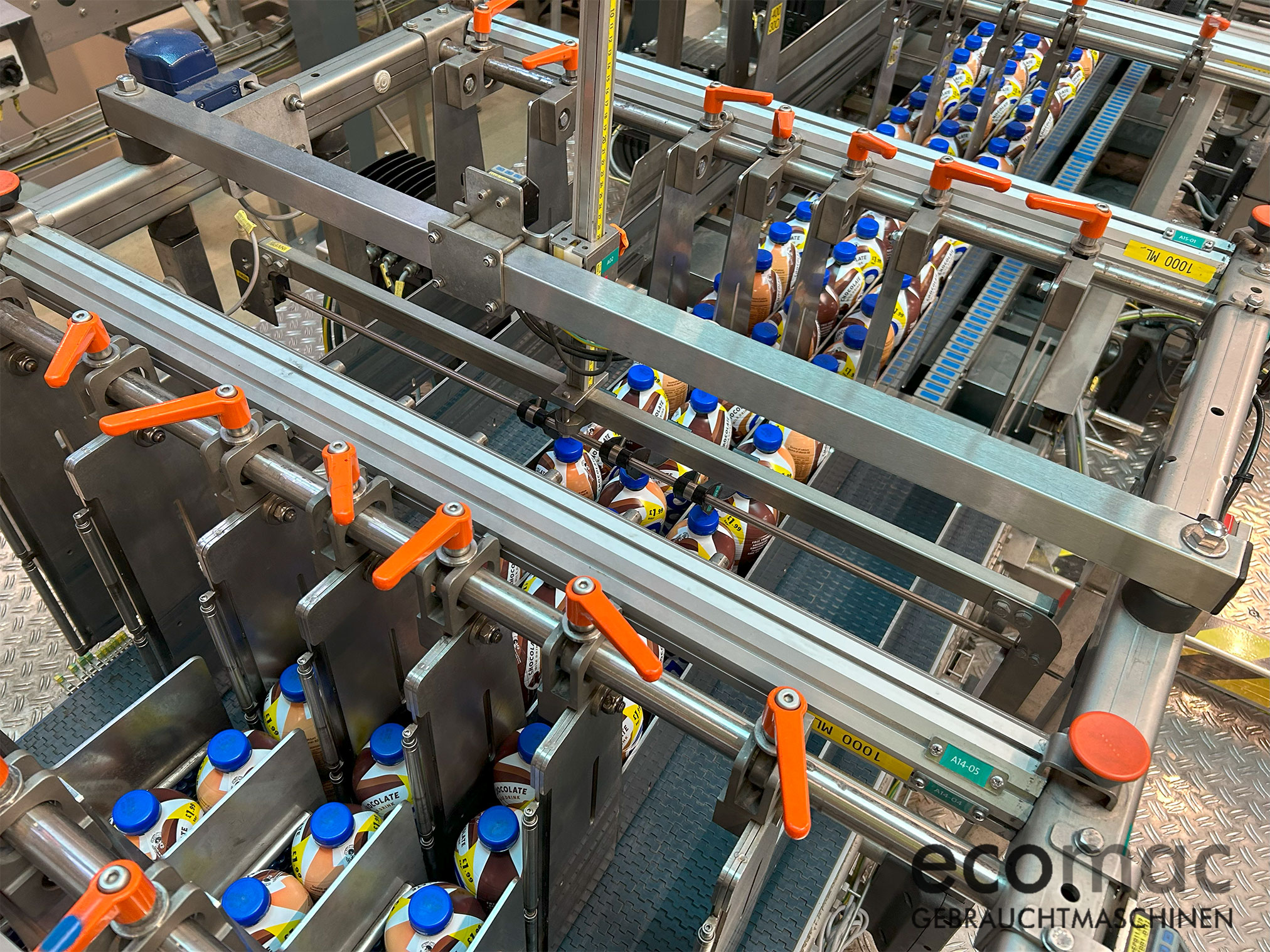

| Dosing at the infeed with individual lane drives | |
| Ergonomic carton magazine with stack preparation and infeed roller conveyor | |
| Tray forming unit with servo-motoric wrapping unit | |
| Hot melt unit (Nordson) | |

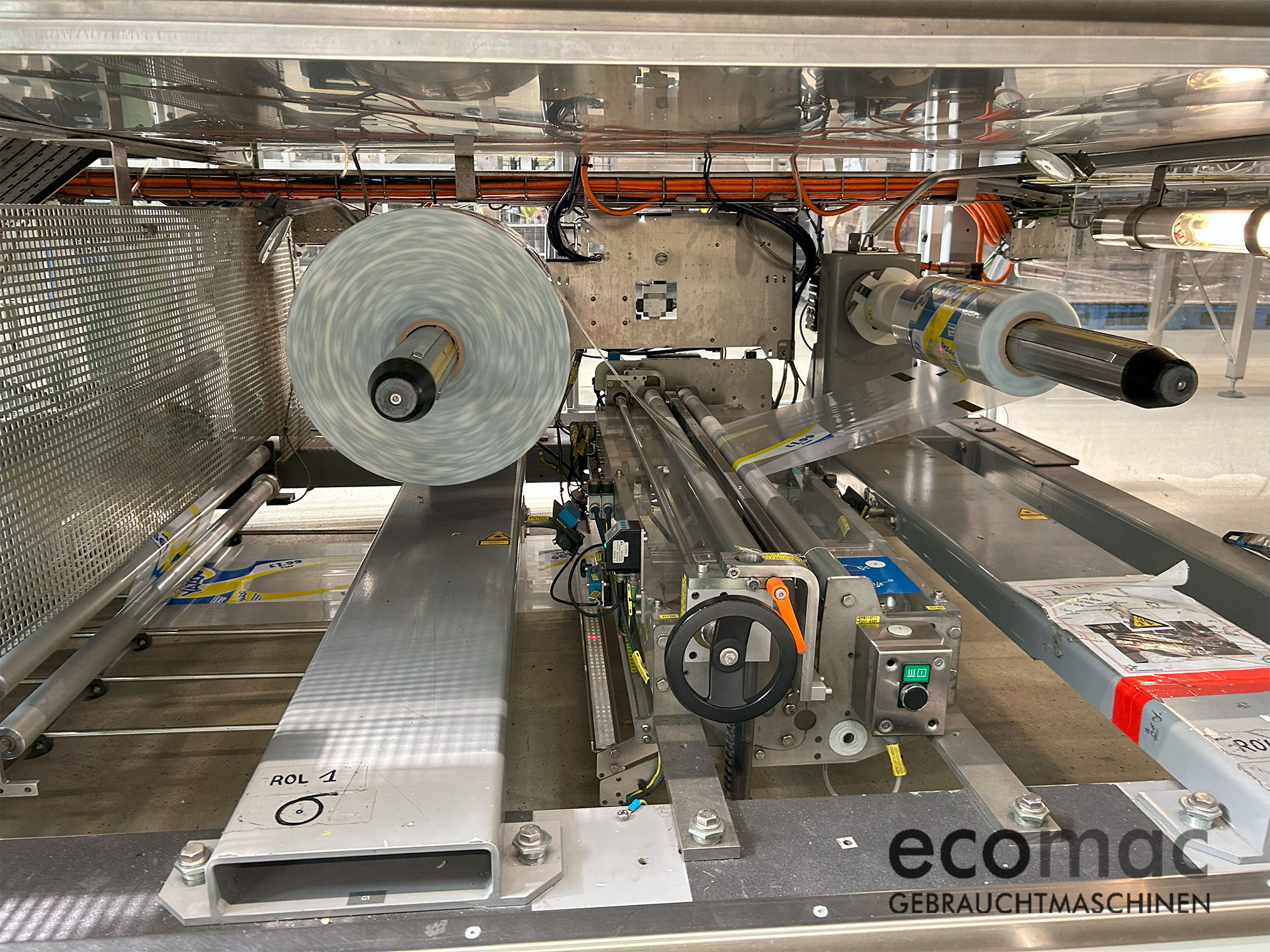

| Film rolls with automatic sealing | |
| Film cutting unit for clear and printed film | |
| Single-lane film wrapping unit | |

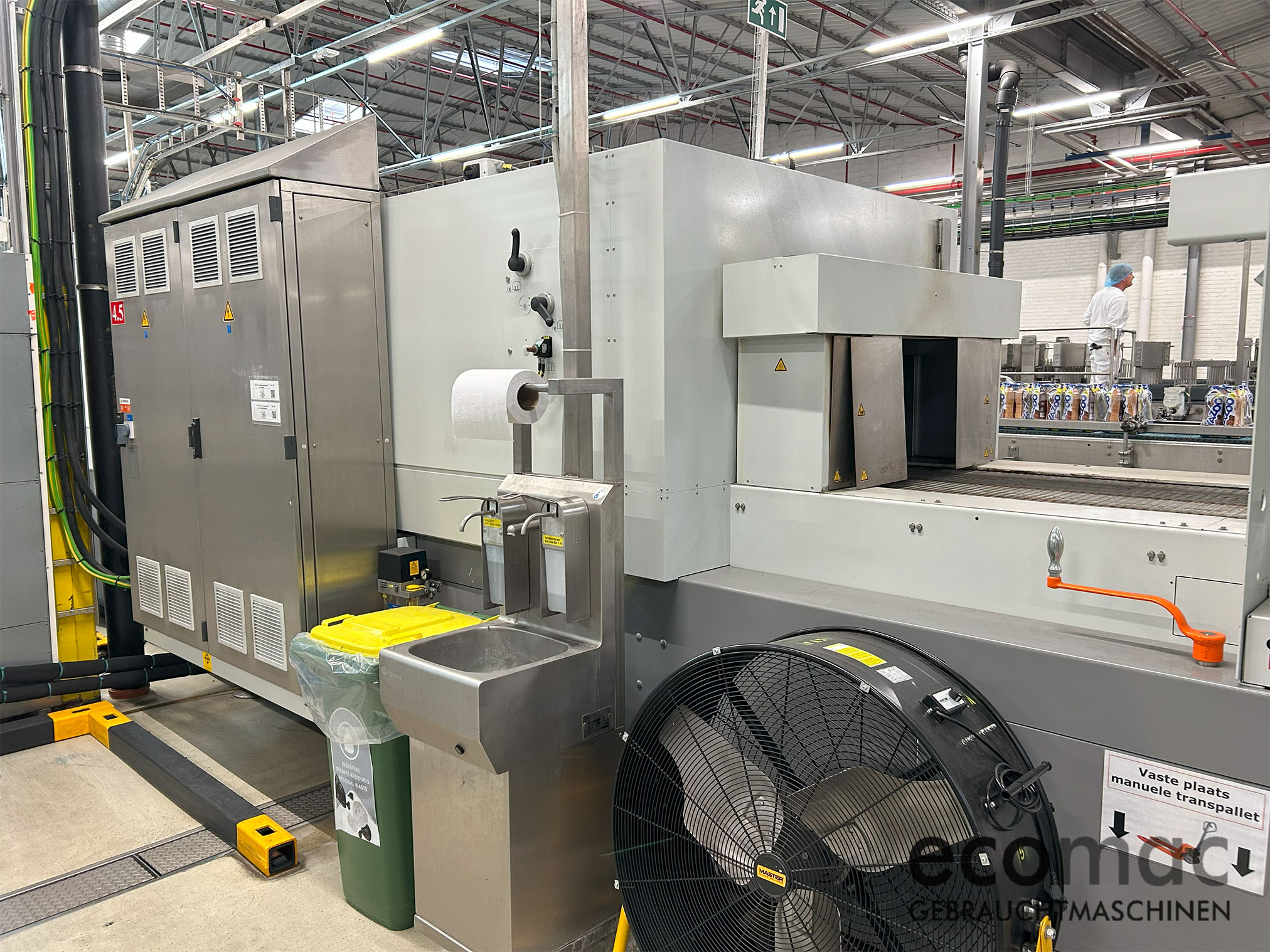

| Shrink oven | with wire mesh belt (width 767 mm) and heating hood (length 6.000 mm) |
| 2 elecric heaters (60 kW each) | |
| Cooling section (length 2.450 mm) with 2 fan pairs and knife-edge transition | |
| ´Voltage | TN-S-net (400 V, 50 Hz) |
| Control Unit | Siemens S7 300 |
| Visualization | 15" Colour display (ZenOn) |
| Without | Foil trolley |
Details
Number
10-24827
Product
Krones
Model
Variopac Pro TFS-80
Performance
60-80 cycles/min
Equipment
30 - 100cl PET-bottles 1-lane in 3x2, 4x2, 5x2, 4x3 „film only“ or 4x3, 5x2, 6x4 „Tray with film“ 30 - 40cl Multipacks 6x(2x2) or 4x(3x2) in “Tray with foil“
Year
2014
Delivery
promptly
Direction
L-R
